Directions from 1 Polyline-Layer ​

This algorithm calculates least-cost routes for multiple waypoints along one or multiple LineString(s).

Toolbox ButtonToolbox

PreviewPreview

Parameters ​

Provider ​

Select the openrouteservice provider you want to use.

Travel mode ​

Select mode of travel.

Options
  • driving-car
  • driving-hgv
  • cycling-regular
  • cycling-road
  • cycling-mountain
  • cycling-electric
  • foot-walking
  • foot-hiking
  • wheelchair

A detailed description of this can be viewed here

Input Line Layer ​

A (Multi-)LineString layer along which the route will be calculated. A route will be calculated for each line. Each LineString can have up to 50 waypoints.

Layer ID Field ​

Values will transfer to the output layer and can be used to join layers or group features afterwards.

Travel Preference ​

Dictates the cost. For longer routes don't use Shortest Path.

Options
  • fastest
  • shortest
  • recommended

Traveling Salesman ​

You can optionally perform a Traveling Salesman Optimization on the vertices of each (Multi)line features. Enabling Traveling Salesman will erase all other advanced configuration and assume the preference to be fastest.

Examples

Traveling Salesman Problem: Round trip

Traveling Salesman Problem: Round trip

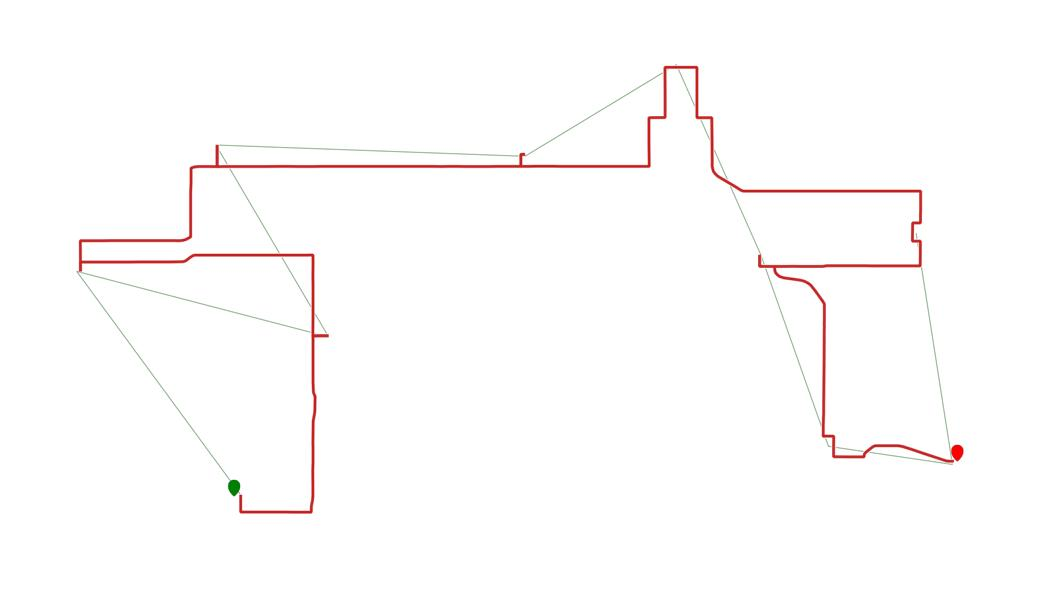

Traveling Salesman Problem: fix start point

Traveling Salesman Problem: fix start point

Traveling Salesman Problem: fix end point

Traveling Salesman Problem: fix end point

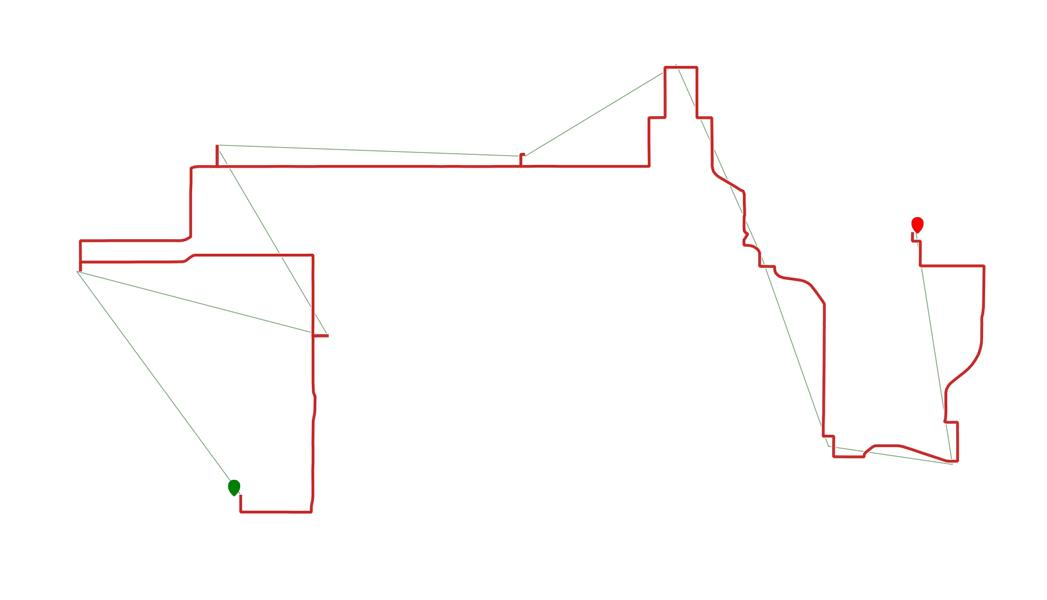

Traveling Salesman Problem: fix start and end points

Traveling Salesman Problem: fix start and end points

Directions(Output) ​

Specify a path, where the layer will be saved. Leaving this empty will result in a temporary layer.

Advanced Parameters ​

These are optional parameters you can use to avoid certain areas.

Features to Avoid ​

You can make your route avoid particular features. Specify them here.

Options
  • Highways
  • Tollways
  • Ferries
  • Fords
  • Steps

Types of borders to avoid ​

Specify which type of border crossing to avoid.

Options
  • all
  • controlled

Comma-separated list of ids of countries to avoid ​

List of countries to exclude from route with driving-* profiles. Can be used together with 'avoid_borders': 'controlled'. [ 11, 193 ] would exclude Austria and Switzerland. List of countries and application examples can be found here. Also, ISO standard country codes can be used in place of the numerical ids, for example, DE or DEU for Germany.

Polygons to avoid ​

You can make your route avoid particular polygons from your layers. Specify them here.
