ORSTools

Appearance

Installation ​

Official Installation ​

The ORS plugin is available over the official QGIS plugin repository and is best installed from the QGIS built-in Plugin Manager.

Plugin Manager

Setup - Provider and API Key ​

In the configuration window (Web > ORS Tools > Configuration) you have set up the API key, which will be saved locally in the QGIS settings and will automatically be used across all tools. Other settings are described below.

Sign up for an API key ​

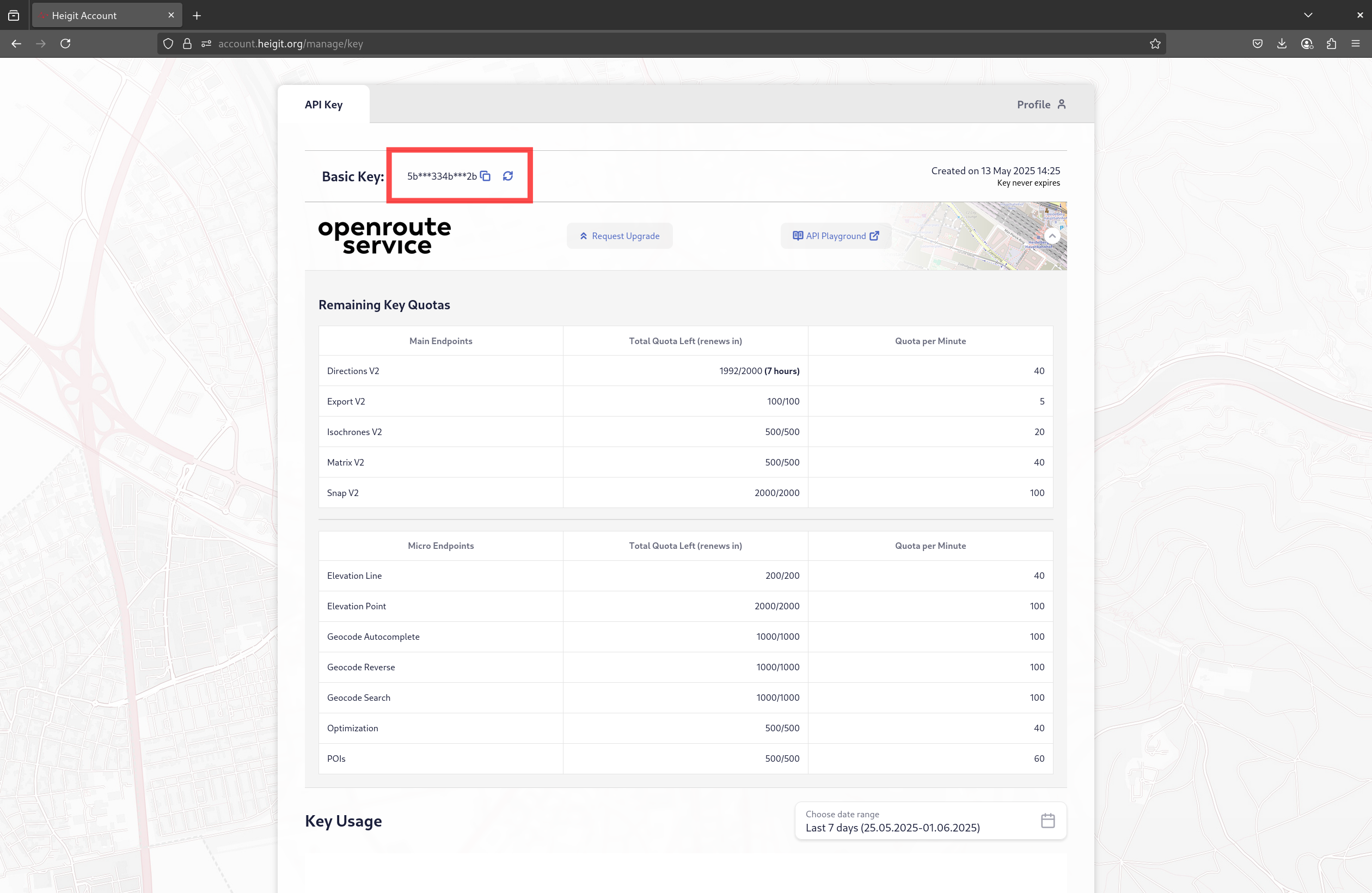

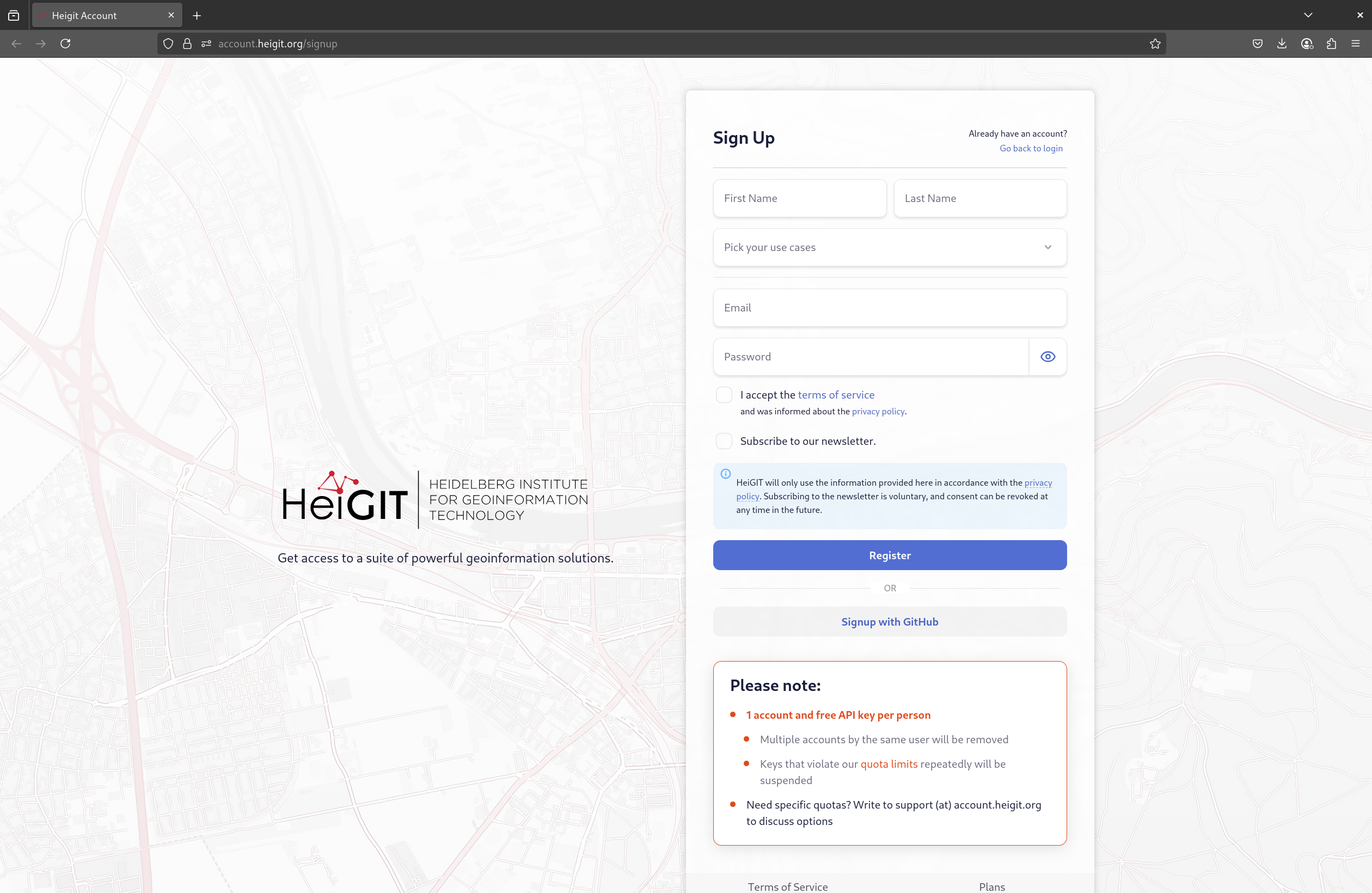

First, you'll have to sign up and copy your API key from your HeiGIT account.

Signup webpageopenrouteservice dashboard

Set up the API key in QGIS ​

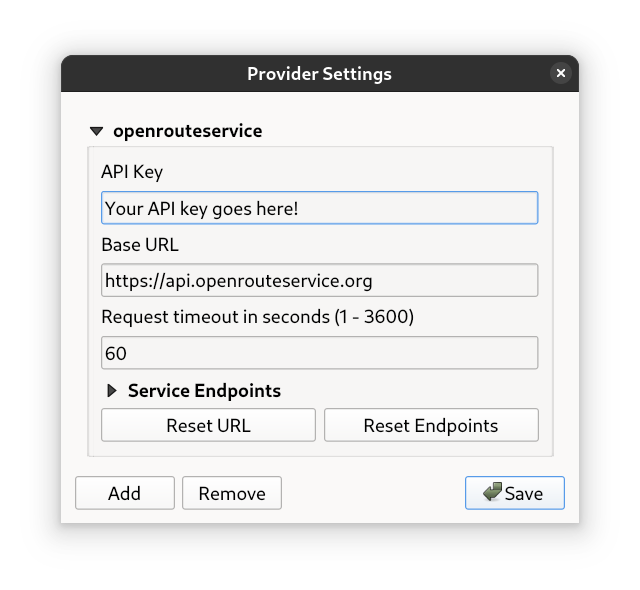

  1. Open the configuration window by going to Web > ORS Tools > Configuration. Or by clicking the gear icon in the plugin.
  2. Open the provider box by clicking on the caret icon next to the provider name.
  3. Enter your API key in the API Key field.

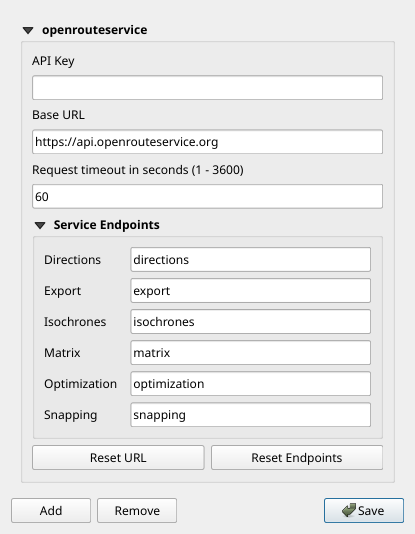

Further Settings ​

Further Settings

Base URL ​

The Base URL controls what openrouteservice instance the plugin connects to. For a local instance, set this to the URL your instance runs under. By default, this should be http://localhost:8082.

To get back to the default URL for the public API, use the Reset URL button.

Request Timeout ​

The Request timeout in seconds (1 - 3600) setting controls when the plugin will timeout any request to the configured openrouteservice instance. Large request to self-hosted instances might take longer than the default of 60 seconds, so a higher value can be configured.

Service Endpoints ​

All settings under Service Endpoints control what API endpoint the corresponding processing algorithms are contacting. Since openrouteservice v9.0.0, endpoint names are configurable for local instances.

To get back to the default endpoints used by the public API, use the Reset Endpoints button.

Adding providers ​

TODO: How to and what to

Nightly Installation ​

If you want to use any unreleased feature, you can always install the current development version of the plugin manually.

  1. Download the ZIP archive from the main branch
  2. Unzip and copy the folder ORStools into your system's QGIS plugin directory:
  • Linux: ~/.local/share/QGIS/QGIS3/profiles/default/python/plugins
  • Windows: C:\Users\USER\AppData\Roaming\QGIS\QGIS3\profiles\default\python\plugins
  • Mac OS: Library/Application Support/QGIS/QGIS3/profiles/default/python/plugins
  1. Restart QGIS and if necessary, activate the ORS Tools plugin over the Plugin Manager.
